Package Variant Controller

When deploying workloads across large fleets of clusters, it is often necessary to modify the workload configuration for a specific cluster. Additionally, those workloads may evolve over time with security or other patches that require updates. Configuration as Data in general, and Package Orchestration in particular, can assist in this. However, they are still centered around a manual, one-by-one hydration and configuration of a workload.

This proposal introduces a number of concepts and a set of resources for automating the creation and lifecycle management of the package variants. These are designed to address several different dimensions of scalability:

• the number of different workloads for a given cluster
• the number of clusters across which the workloads are deployed
• the different types or characteristics of the clusters
• the complexity of the organizations deploying the workloads
• changes to those workloads over time

For further information, see the following links:

• Package Orchestration
• #3347 Bulk package creation
• #3243 Support bulk package upgrades
• #3488 Porch: BaseRevision controller aka Fan Out controller - but more
• Managing Package Revisions
• Porch UpstreamPolicy Resource API

Core concepts

For this solution, the workloads are represented by packages. A package is a more general concept, being an arbitrary bundle of resources, and is therefore sufficient to solve the problem that was stated originally.

The idea here is to introduce a PackageVariant resource that manages the derivation of a variant of a package from the original source package, and to manage the evolution of that variant over time. This effectively automates the human-centered process for variant creation that might be used with kpt, and allows you to do the following:

• Clone an upstream package locally.
• Make changes to the local package, setting values in the resources and executing KRM functions.
• Push the package to a new repository and tag it as a new version.

Similarly, the PackageVariant can manage the process of updating a package when a new version of the upstream package is published. In the human-centered workflow, a user uses the kpt pkg update to pull in changes to their derivative package. When using a PackageVariant resource, the change is made to the upstream specification in the resource, and the controller proposes a new draft package reflecting the outcome of the kpt pkg update.

Automating this process opens up the possibility of performing systematic changes that tie back to the different dimensions of scalability. We can use data about the specific variant we are creating to look up an additional context in the Porch cluster, and copy that information into the variant. That context is a well-structured resource, not simply a set of key/value pairs. The KRM functions within the package can interpret the resource, modifying other resources in the package accordingly. The context can come from multiple sources that vary differently along those dimensions of scalability. For example, one piece of information may vary by region, another by individual site, another by cloud provider, and another based on whether we are deploying to development, staging, or production. By using the resources in the Porch cluster as our input model, we can represent this complexity in a manageable model that is reused across many packages, rather than scattered in package-specific templates or key/value pairs without any structure. The KRM functions, also reused across packages, but configured as needed for the specific package, are used to interpret the resources within the package. This decouples the authoring of the packages, the creation of the input model, and the deploy time use of that input model within the packages, thereby allowing those activities to be performed by different teams or organizations.

The mechanism described above is referred to as configuration injection. Configuration injection enables the dynamic, context-aware creation of variants. Another way to think about it is as a continuous reconciliation, much like other Kubernetes controllers. In this case, the inputs are a parent package P and a context C (which may be a collection of many independent resources), with the output being the derived package D. When a new version of C is created by updates to in-cluster resources, we get a new revision of D, customized according to the updated context. Similarly, the user (or an automation) can monitor for new versions of P. When a new version arrives, the PackageVariant can be updated to point to that new version. This results in a newly proposed draft D, updated to reflect the upstream changes. This will be explained in more detail below.

This proposal also introduces a way of “fanning out”, or creating multiple PackageVariant resources declaratively based on a list or selector with the PackageVariantSet resource. This is combined with the injection mechanism to enable the generation of large sets of variants that are specialized for a particular target repository, cluster, or other resource.

Basic package cloning

The PackageVariant resource controls the creation and lifecycle of a variant of a package. That is, it defines the original (upstream) package, the new (downstream) package, and the changes, or mutations, that need to be made to transform the upstream package into the downstream package. It also allows the user to specify the policies around the adoption, deletion, and update of package revisions that are under the control of the package variant controller.

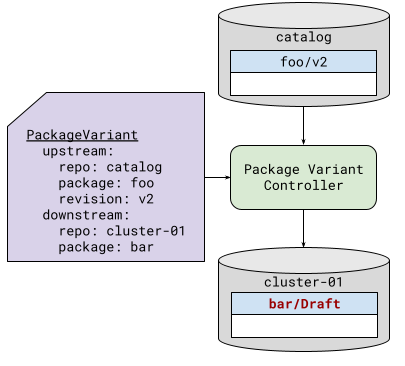

The clone operation is shown in Figure 1.

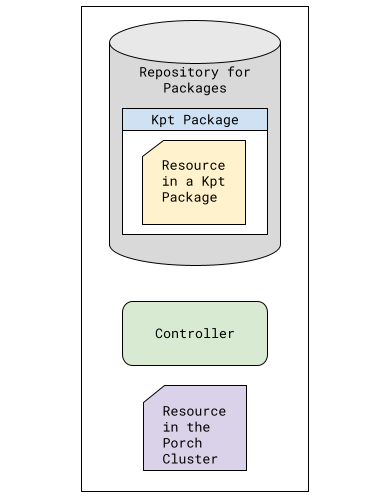

Figure 1: Basic package cloning	Legend

PackageRevision metadata

The package variant controller utilizes Porch APIs. This means that it is not just performing a clone operation, but is also creating a Porch PackageRevision resource. In particular, this resource can contain Kubernetes metadata that is not a part of the package, as stored in the repository.

Some of this metadata is necessary for the management of the PackageRevision by the package variant controller, for example, the owner reference that indicates which PackageVariant created the PackageRevision. This metadata is not under the user’s control. However, the PackageVariant resource does make the annotations and labels of the PackageRevision available as values that the user may control during the creation of the PackageRevision. This can assist in additional automation workflows.

Introducing variance

Since cloning by itself is not particularly interesting, the PackageVariant resource also allows you to control the various ways of mutating the original package to create the variant.

Package context¹

Every kpt package that is fetched with --for-deployment contains a ConfigMap called kptfile.kpt.dev. Analogously, when Porch creates a package in a deployment repository, it creates a ConfigMap, if it does not already exist. Kpt (or Porch) automatically adds a key name to the ConfigMap data, with the value of the package name. This ConfigMap can then be used as input to the functions in the kpt function pipeline.

This process also holds true for the package revisions created via the package variant controller. Additionally, the author of the PackageVariant resource can specify additional key-value pairs to insert into the package context, as shown in Figure 2.

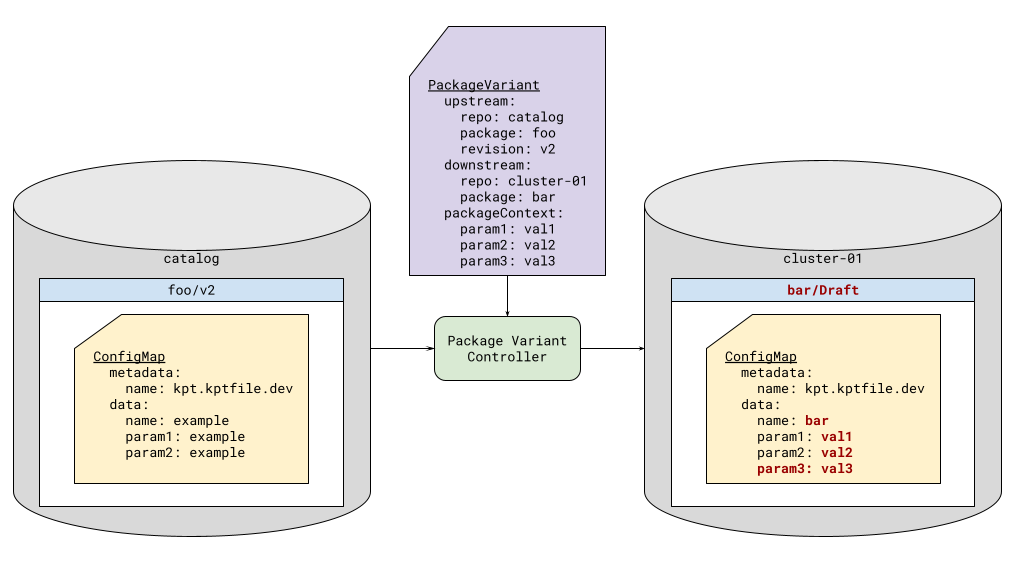

*Figure 2: Package context mutation *

While this is convenient, it can easily be misused, leading to over-parameterization. The preferred approach is configuration injection, as described below, since it allows inputs to adhere to a well-defined, reusable schema, rather than simple key/value pairs.

Kptfile function pipeline editing²

In the manual workflow, one of the ways in which packages are edited is by running KRM functions imperatively. The PackageVariant offers a similar capability, by allowing the user to add functions to the beginning of the downstream package Kptfile mutators pipeline. These functions then execute before the functions present in the upstream pipeline. This method is not exactly the same as running functions imperatively, because they are also run in every subsequent execution of the downstream package function pipeline. However, it can achieve the same goals.

Consider, for example, an upstream package that includes a Namespace resource. In many organizations, the deployer of the workload may not have the permissions to provision cluster-scoped resources such as namespaces. This means that they would not be able to use this upstream package without removing the Namespace resource (assuming that they only have access to a pipeline that deploys with constrained permissions). By adding a function that removes Namespace resources, and a call to set-namespace, they can take advantage of the upstream package.

Similarly, the Kptfile pipeline editing feature provides an easy mechanism for the deployer to create and set the namespace, if their downstream package application pipeline allows it, as seen in Figure 3.³

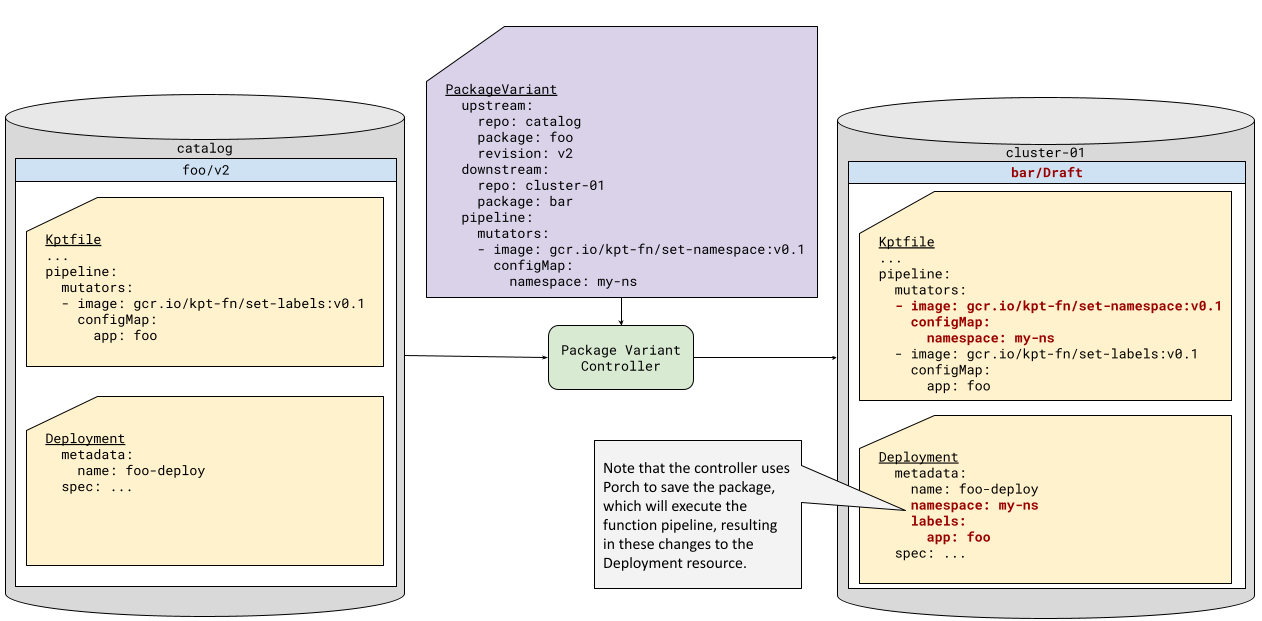

*Figure 3: Kptfile function pipeline editing *

Configuration injection²

Adding values to the package context or functions to the pipeline works for configurations that are under the control of the creator of the PackageVariant resource. However, in more advanced use cases, it may be necessary to specialize the package based on other contextual information. This comes into play in particular when the user deploying the workload does not have direct control over the context in which it is being deployed. For example, one part of the organization may manage the infrastructure - that is, the cluster in which the workload is being deployed - and another part the actual workload. It would be desirable to be able to pull in the inputs specified by the infrastructure team automatically, based on the cluster to which the workload is deployed, or possibly the region in which the cluster is deployed.

To facilitate this, the package variant controller can “inject” configuration directly into the package. This means it uses information specific to this instance of the package to look up a resource in the Porch cluster and copy that information into the package. The package has to be ready to receive this information. Therefore, there is a protocol that is used to facilitate this:

• Packages may contain resources annotated with kpt.dev/config-injection
• These resources are often also config.kubernetes.io/local-config resources, as they are likely to be used only by the local functions as input. However, this is not mandatory.
• The package variant controller looks for any resource in the Kubernetes cluster that matches the Group, Version, and Kind of the package resource, and satisfies the injection selector.
• The package variant controller copies the specification field from the matching in-cluster resource to the in-package resource, or the data field, in the case of a ConfigMap.

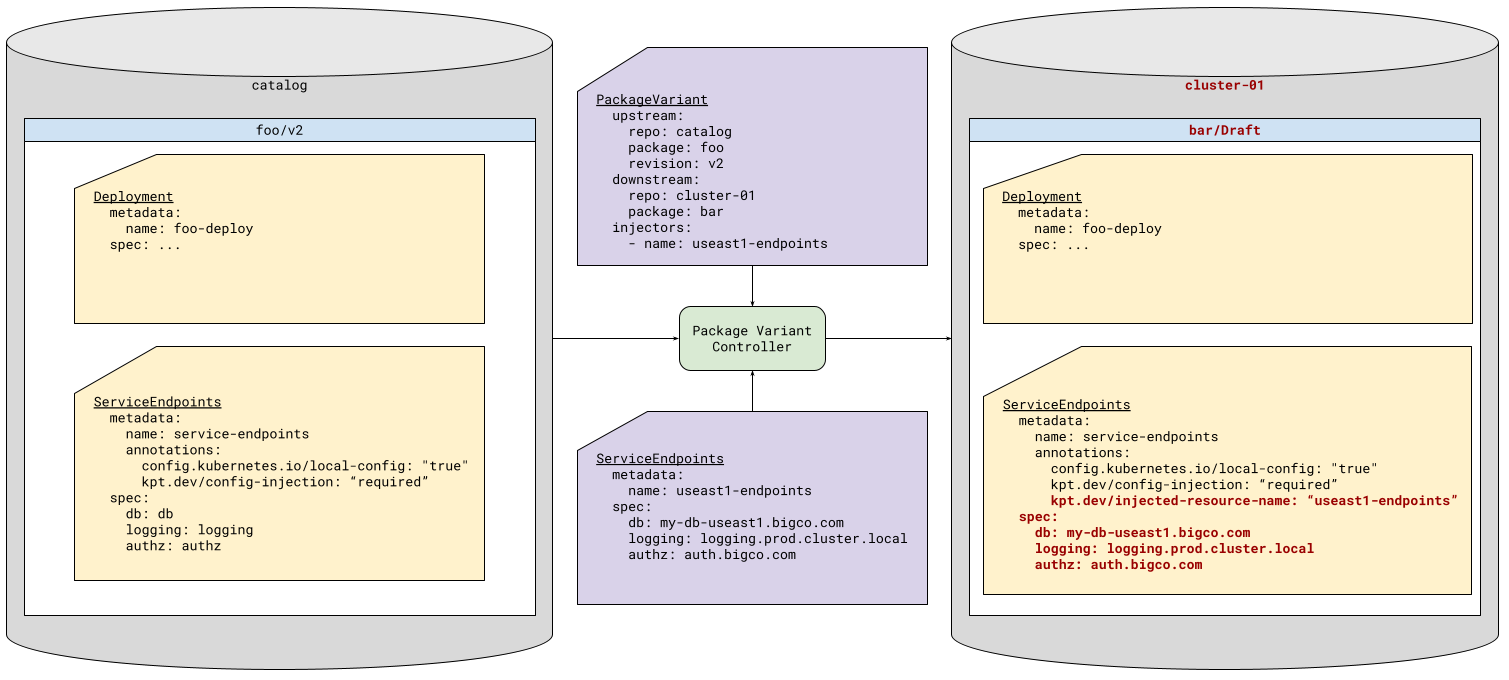

Figure 4: Configuration injection

There are a number of additional details that will be described in the detailed design below, along with the specific API definition.

Lifecycle management

Upstream changes

The package variant controller allows you to specify an upstream package revision to clone. Alternatively, you can specify a floating tag⁴.

If you specify an upstream revision, then the downstream will not be changed unless the PackageVariant resource itself is modified to point to a new revision. That is, the user must edit the PackageVariant and change the upstream package reference. When that is done, the package variant controller updates any existing draft package under its ownership by performing the equivalent of a kpt pkg update. This updates the downstream so that it is based on the new upstream revision. If a draft does not exist, then the package variant controller creates a new draft based on the current published downstream, and applies the kpt pkg update. This updated draft must then be proposed and approved, as with other package changes.

If a floating tag is used, then explicit modification of the PackageVariant is not required. Rather, when the floating tag is moved to a new tagged revision of the upstream package, the package revision controller will notice and automatically propose an update to that revision. For example, the upstream package author may designate three floating tags: stable, beta, and alpha. The upstream package author can move these tags to specific revisions, and any PackageVariant resource tracking them will propose updates to their downstream packages.

Adoption and deletion policies

When a PackageVariant resource is created, it has a particular repository and package name as the downstream. The adoption policy determines whether or not the package variant controller takes over an existing package with that name, in that repository.

Analogously, when a PackageVariant resource is deleted, a decision must be made about whether or not to delete the downstream package. This is controlled by the deletion policy.

Fanning out of variant generation⁵

When used with a single package, the package variant controller mostly helps to handle the time dimension: that is, producing new versions of a package as the upstream changes, or as injected resources are updated. It can also be useful for automating common, systematic changes that are made when bringing an external package into an organization, or an organizational package into a team repository.

This is useful, but not particularly compelling by itself. More interesting is when we use the PackageVariant as a primitive for automations that act on other dimensions of scale. This means writing controllers that emit PackageVariant resources. For example, we can create a controller that instantiates a PackageVariant for each developer in our organization, or we can create a controller to manage the PackageVariants across environments. The ability not only to clone a package, but also to make systematic changes to that package, enables flexible automation.

The workload controllers in Kubernetes are a useful analogy. In Kubernetes, there are different workload controllers, such as Deployment, StatefulSet, and DaemonSet. These all ultimately result in pods. However, the decisions as to what kind of pods to create, how to schedule them across the nodes, how to configure the pods, and how to manage them as changes take place, differ with each workload controller. Similarly, we can build different controllers to handle the different ways in which we want to generate the PackageRevisions. The PackageVariant resource provides a convenient primitive for all of these controllers, allowing them to leverage a range of well-defined operations to mutate the packages as needed.

A common requirement is the ability to generate multiple variants of a package based on a simple list of an entity. Examples include the following:

• Generating package variants to spin up development environments for each developer in an organization.
• Instantiating the same package, with minor configuration changes, across a fleet of clusters.
• Instantiating the packages for each customer.

The package variant set controller is designed to meet this common need. The controller consumes and outputs the PackageVariant resources. The PackageVariantSet defines the following:

• the upstream package
• the targeting criteria
• a template for generating one PackageVariant per target

Three types of targeting are supported:

• an explicit list of repositories and package names
• a label selector for the repository objects
• an arbitrary object selector

The rules for generating a PackageVariant are associated with a list of targets using a template. This template can have explicit values for various PackageVariant fields, or it can use Common Expression Language (CEL) expressions to specify the field values.

Figure 5 shows an example of the creation of PackageVariant resources based on the explicit list of repositories. In this example, for the cluster-01 and cluster-02 repositories, no template is defined for the resulting PackageVariants. It simply takes the defaults. However, for cluster-03, a template is defined to change the downstream package name to bar.

Figure 5: PackageVariantSet with the repository list

It is also possible to target the same package to a repository more than once, using different names. This is useful if, for example, the package is used for provisioning namespaces and you would like to provision multiple namespaces in the same cluster. It is also useful if a repository is shared across multiple clusters. In Figure 6, two PackageVariant resources for creating the foo package in the cluster-01 repository are generated, one for each listed package name. Since no packageNames field is listed for cluster-02, only one instance is created for that repository.

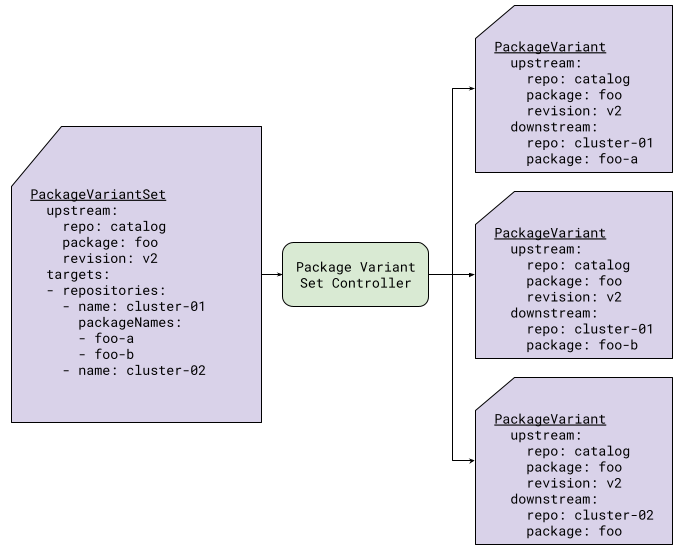

Figure 6: PackageVariantSet with the package list

Figure 7 shows an example that combines a repository label selector with configuration injectors that differ according to the target. The template for the PackageVariant includes a CEL expression for one of the injectors, so that the injection varies systematically according to the attributes of the target.

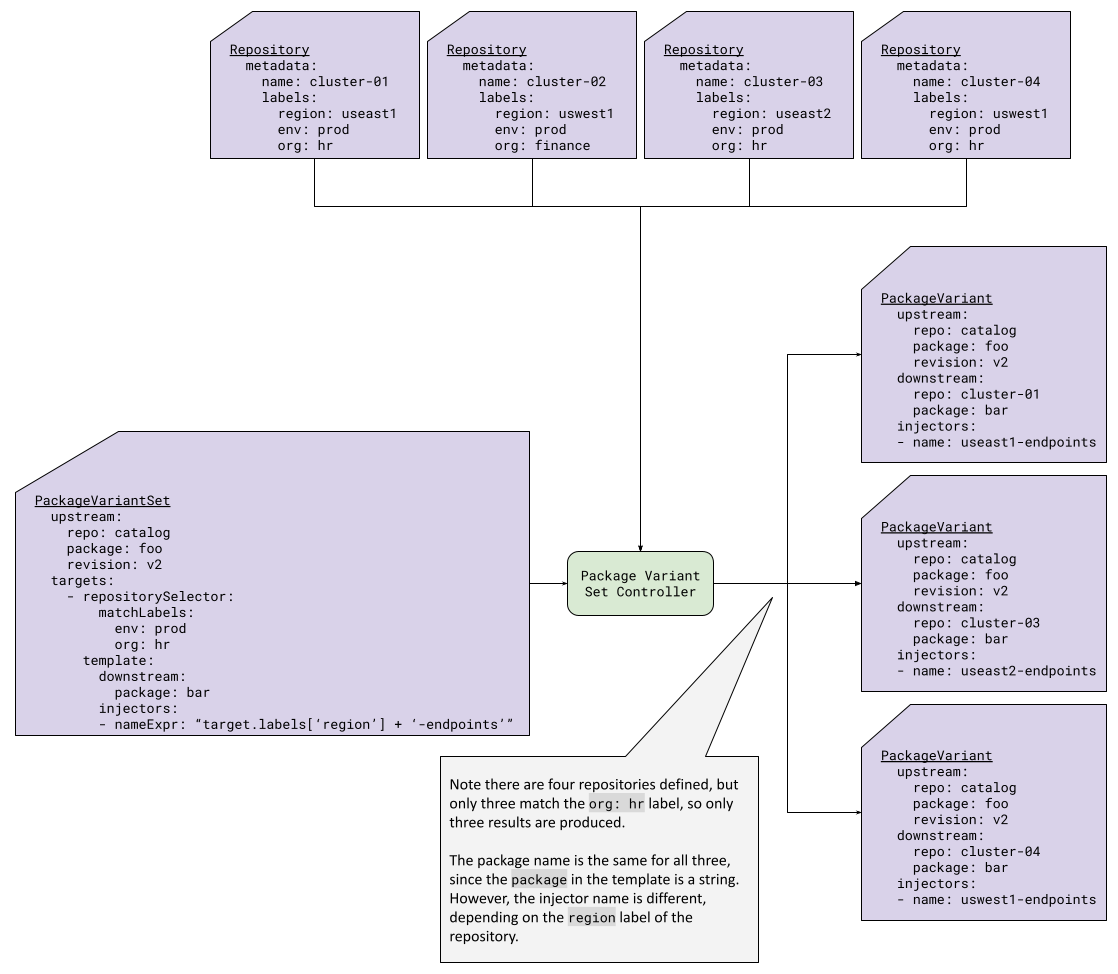

Figure 7: PackageVariantSet with the repository selector

Detailed design

PackageVariant API

The Go types below define the PackageVariantSpec.

type PackageVariantSpec struct {
        Upstream   *Upstream   `json:"upstream,omitempty"`
        Downstream *Downstream `json:"downstream,omitempty"`

        AdoptionPolicy AdoptionPolicy `json:"adoptionPolicy,omitempty"`
        DeletionPolicy DeletionPolicy `json:"deletionPolicy,omitempty"`

        Labels      map[string]string `json:"labels,omitempty"`
        Annotations map[string]string `json:"annotations,omitempty"`

        PackageContext *PackageContext     `json:"packageContext,omitempty"`
        Pipeline       *kptfilev1.Pipeline `json:"pipeline,omitempty"`
        Injectors      []InjectionSelector `json:"injectors,omitempty"`
}

type Upstream struct {
        Repo     string `json:"repo,omitempty"`
        Package  string `json:"package,omitempty"`
        Revision string `json:"revision,omitempty"`
}

type Downstream struct {
        Repo    string `json:"repo,omitempty"`
        Package string `json:"package,omitempty"`
}

type PackageContext struct {
        Data       map[string]string `json:"data,omitempty"`
        RemoveKeys []string          `json:"removeKeys,omitempty"`
}

type InjectionSelector struct {
        Group   *string `json:"group,omitempty"`
        Version *string `json:"version,omitempty"`
        Kind    *string `json:"kind,omitempty"`
        Name    string  `json:"name"`
}

Basic specification fields

The Upstream and Downstream fields specify the source package, and the destination repository and package name. The Repo fields refer to the names of the Porch Repository resources in the same namespace as the PackageVariant resource. The Downstream field does not contain a revision, because the package variant controller only creates the draft packages. The revision of the eventual PackageRevision resource is determined by Porch at the time of approval.

The Labels and Annotations fields list the metadata to include in the created PackageRevision. These values are set only at the time a draft package is created. They are ignored for subsequent operations, even if the PackageVariant itself has been modified. This means users are free to change these values on the PackageRevision. The package variant controller will not touch them again.

The AdoptionPolicy controls how the package variant controller behaves if it finds an existing PackageRevision draft matching the Downstream field. If the status of the AdoptionPolicy is adoptExisting, then the package variant controller takes ownership of the draft, associating it with this PackageVariant. This means that it will begin to reconcile the draft, as if it had created it in the first place. If the status of the AdoptionPolicy is adoptNone (this is the default setting), then the package variant controller simply ignores any matching drafts that were not created by the controller.

The DeletionPolicy controls how the package variant controller behaves with respect to the PackageRevisions that package variant controller created when the PackageVariant resource itself was deleted. The delete value (the default value) deletes the PackageRevision, potentially removing it from a running cluster, if the downstream package has been deployed. The orphan value removes the owner references and leaves the PackageRevisions in place.

Package context injection

PackageVariant resource authors may specify key-value pairs in the spec.packageContext.data field of the resource. These key-value pairs are automatically added to the data of the kptfile.kpt.dev ConfigMap, if it exists.

Specifying the key name is invalid and must fail the validation of the PackageVariant. This key is reserved for kpt or Porch to set to the package name. Similarly, the package-path is reserved and will result in an error.

The spec.packageContext.removeKeys field can also be used to specify a list of keys that the package variant controller should remove from the data field of the kptfile.kpt.dev ConfigMap.

When creating or updating a package, the package variant controller ensures the following:

• The kptfile.kpt.dev ConfigMap exists. If it does not exist, then the package variant controller will fail the ConfigMap.
• All of the key-value pairs in the spec.packageContext.data exist in the data field of the ConfigMap.
• None of the keys listed in spec.packageContext.removeKeys exists in the ConfigMap.

If, for some reason, the controller cannot modify the ConfigMap, then this is considered to be an error and will prevent the generation of the draft. This will result in the Ready condition being set to False.

Editing the Kptfile function pipeline

The PackageVariant resource creators may specify a list of KRM functions to add to the beginning of the Kptfile’s pipeline. These functions are listed in the spec.pipeline field, which is a Pipeline, just as in the Kptfile. The user can therefore prepend both validators and mutators.

Functions added in this way are always added to the beginning of the Kptfile pipeline. To enable the management of the list on subsequent reconciliations, functions added by the package variant controller use the Name field of the Function. In the Kptfile, each function is named as the dot-delimited concatenation of the PackageVariant, the name of the PackageVariant resource, the function name as specified in the pipeline of the PackageVariant resource (if present), and the positional location of the function in the array.

For example, if the PackageVariant resource contains the following:

apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
  namespace: default
  name: my-pv
spec:
  ...
  pipeline:
    mutators:
    - image: gcr.io/kpt-fn/set-namespace:v0.1
      configMap:
        namespace: my-ns
      name: my-func
    - image: gcr.io/kpt-fn/set-labels:v0.1
      configMap:
        app: foo

then the resulting Kptfile will have the following two entries prepended to its mutators list:

  pipeline:
    mutators:
    - image: gcr.io/kpt-fn/set-namespace:v0.1
      configMap:
        namespace: my-ns
      name: PackageVariant.my-pv.my-func.0
    - image: gcr.io/kpt-fn/set-labels:v0.1
      configMap:
        app: foo
      name: PackageVariant.my-pv..1

This allows the controller, during subsequent reconciliations, to identify the functions within its control, remove them all, and add them again, based on its updated content. Including the PackageVariant name enables chains of PackageVariants to add functions, as long as the user is careful about their choice of resource names and avoids conflicts.

If, for some reason, the controller cannot modify the pipeline, then this is considered to be an error and should prevent the generation of the draft. This will result in the Ready condition being set to False.

Configuration injection details

As described above, configuration injection is a process whereby in-package resources are matched to in-cluster resources, and the specifications of the in-cluster resources are copied to the in-package resource.

Configuration injection is controlled by a combination of in-package resources with annotations, and injectors (also known as injection selectors) defined on the PackageVariant resource. Package authors control the injection points they allow in their packages, by flagging specific resources as injection points with an annotation. Creators of the PackageVariant resource specify how to map in-cluster resources to those injection points using the injection selectors. Injection selectors are defined in the spec.injectors field of the PackageVariant. This field is an ordered array of structs containing a group, version, kind (GVK) tuple as separate fields, and a name. Only the name is required. To identify a match, all fields present must match the in-cluster object, and all GVK fields present must match the in-package resource. In general, the name will not match the in-package resource. This is discussed in more detail below.

The annotations, along with the GVK of the annotated resource, allow a package to “advertise” the injections it can accept and understand. These injection points effectively form a configuration API for the package. The injection selectors provide a way for the PackageVariant author to specify the inputs for those APIs from the possible values in the management cluster. If we define the APIs carefully, they can be used across many packages. Since they are KRM resources, we can apply versioning and schema validation to them as well. This creates a more maintainable, automatable set of APIs for package customization than simple key/value pairs.

As an example, we can define a GVK that contains service endpoints that many applications use. In each application package, we then include an instance of the resource. We can call this resource, for example, service-endpoints. We then configure a function to propagate the values from this resource to other resources within our package. As those endpoints may vary by region, we can create in our Porch cluster an instance of this GVK for each region: useast1-service-endpoints, useast2-service-endpoints, uswest1-service-endpoints, and so on. When we instantiate the PackageVariant for a cluster, we want to inject the resource corresponding to the region in which the cluster exists. Therefore, for each cluster we will create a PackageVariant resource pointing to the upstream package, but with injection selector name values that are specific to the region for that cluster.

It is important to understand that the name of the in-package resource and that of the in-cluster resource need not match. In fact, it would be an unusual coincidence if they did match. The names in the package are the same across the PackageVariants using that upstream, but we want to inject different resources for each PackageVariant. In addition, we do not want to change the name in the package, because it likely has meaning within the package and will be used by the functions in the package. Also, different owners control the names of the in-package and in-cluster resources. The names in the package are in the control of the package author. The names in the cluster are in the control of whomever populates the cluster (for example, an infrastructure team). The selector is the glue between them, and is in control of the PackageVariant resource creator.

The GVK, however, has to be the same for the in-package resource and the in-cluster resource. This is because the GVK tells us the API schema for the resource. Also, the namespace of the in-cluster object needs to be the same as that of the PackageVariant resource. Otherwise, we could leak resources from those namespaces to which our PackageVariant user does not have access.

With this in mind, the injection process works as follows:

1. The controller examines all the in-package resources, looking for those that have an annotation named kpt.dev/config-injection, with either of the following values:

   • required
   • optional These are called injection points. It is the responsibility of the package author to define these injection points, and to specify which are required and which are optional. Optional injection points are a way of specifying default values.

2. For each injection point, a condition is created in the downstream PackageRevision, with the ConditionType set to the dot-delimited concatenation of the config.injection, with the in-package resource kind and name, and the value set to False.

   Note

   Since the package author controls the name of the resource, the kind and the name are sufficient to identify the injection point. This ConditionType is called the “injection point ConditionType”.

3. For each required injection point, the injection point ConditionType is added to the PackageRevision readinessGates by the package variant controller. The ConditionTypes of the optional injection points must not be added to the readinessGates by the package variant controller. However, other actors may do so at a later date, and the package variant controller should not remove them on subsequent reconciliations. Also, this relies on the readinessGates gating publishing the package to a deployment repository, but not gating publishing to a blueprint repository.

4. The injection processing proceeds as follows. For each injection point, the following is the case:

   • The controller identifies all in-cluster objects in the same namespace as the PackageVariant resource, with the GVK matching the injection point (the in-package resource). If the controller is unable to load these objects (for example, there are none and the CRD is not installed), then the injection point ConditionType will be set to False, with a message indicating the error. Processing then proceeds to the next injection point.

     Note

      For optional injection, this may be an acceptable outcome. Therefore, it does not interfere
      with the overall generation of the draft.


   • The controller looks through the list of injection selectors in order and checks if any of the in-cluster objects match the selector. If there is an in-cluster object that matches, then that in-cluster object is selected and processing of the list of injection selectors ceases.

     Note

      The namespace is set according to the *PackageVariant* resource. The GVK is set according to
      the in-package resource. Each selector requires a name. Therefore, one match at most is
      possible for any given selector.

      Additionally, *all fields present in the selector* must match the in-cluster resource. Only
      the *GVK fields present in the selector* must match the in-package resource.


   • If no in-cluster object is selected, then the injection point ConditionType is set to False, with a message that no matching in-cluster resource was found. Processing proceeds to the next injection point.

   • If a matching in-cluster object is selected, then it is injected as follows:

     • For the ConfigMap resources, the data field from the in-cluster resource is copied to the data field of the in-package resource (the injection point), overwriting it.
     • For the other resource types, the specification field from the in-cluster resource is copied to the specification field of the in-package resource (the injection point), overwriting it.
     • An annotation with the name kpt.dev/injected-resource-name and the value set to the name of the in-cluster resource is added (or overwritten) in the in-package resource.

If, for some reason, the overall injection cannot be completed, or if either of the problems set out below exists in the upstream package, then it is considered to be an error and should prevent the generation of the draft. The two possible problems are the following:

• There is a resource annotated as an injection point which, however, has an invalid annotation value (that is, a value other than required or optional).
• There are ambiguous condition types, due to conflicting GVK and name values. If this is the case, then these must be disambiguated in the upstream package.

This results in the Ready condition being set to False.

A Further note on selectors

By allowing the use, and not just name, of the GVK in the selector, more precision in the selection is enabled. This is a way to constrain the injections that are performed. That is, if the package has 10 different objects with a config-injection annotation, then the PackageVariant could say it only wants to replace certain GVKs, thereby allowing better control.

Consider, for example, if the cluster contains the following resources:

• GVK1 foo
• GVK1 bar
• GVK2 foo
• GVK2 bar

If we could define injection selectors based only on their names, it would be impossible to ever inject one GVK with foo and another with bar. Instead, by using the GVK, we can accomplish this with a list of selectors, such as the following:

• GVK1 foo
• GVK2 bar

That said, often a name is sufficiently unique when combined with the in-package resource GVK. Therefore, making the selector GVK optional is more convenient. This allows a single injector to apply to multiple injection points with different GVKs.

Order of mutations

During creation, the first step the controller takes is to clone the upstream package to create the downstream package.

For the update, first note that changes to the downstream PackageRevision can be triggered for the following reasons:

1. The PackageVariant resource is updated. This could change any of the options for introducing variance, or could also change the upstream package revision referenced.
2. A new revision of the upstream package has been selected, due to a floating tag change, or due to a force retagging of the upstream.
3. An injected in-cluster object has been updated.

The downstream PackageRevision may have been updated by humans or other automation actors since creation. Therefore, we cannot simply recreate the downstream PackageRevision from scratch when a change occurs. Instead, the controller must maintain the later edits by performing the equivalent of a kpt pkg update, in the case of changes to the upstream, for any reason. Any other changes require a reapplication of the PackageVariant functionality. With this in mind, we can see that the controller performs mutations on the downstream package in the following order, for both creation and update:

1. Create (via clone) or update (via kpt pkg update equivalent):

   • This is carried out by the Porch server, not directly by the package variant controller.
   • This means that Porch runs the Kptfile pipeline after clone or update.

2. The package variant controller applies configured mutations:

   • Package context injections
   • Kptfile KRM function pipeline additions/changes
   • Config injection

3. The package variant controller saves the PackageRevision and the PackageRevisionResources:

   • The Porch server executes the Kptfile pipeline.

The package variant controller mutations edit the resources (including the Kptfile) according to the contents of the PackageVariant and the injected in-cluster resources. However, they cannot affect one another. The results of these mutations throughout the rest of the package are manifested by the execution of the Kptfile pipeline during the save operation.

PackageVariant status

The PackageVariant sets the following status conditions:

• Stalled The PackageVariant sets this condition to True if there has been a failure that likely requires intervention by the user.
• Ready The PackageVariant sets this condition to True if the last reconciliation has successfully produced an up-to-date draft.

The PackageVariant resource also contains a DownstreamTargets field. This field contains a list of downstream Draft and Proposed PackageRevisions owned by this PackageVariant resource, or the latest published PackageRevision, if there are none in the Draft or Proposed state. Typically, there is only a single draft, but the use of the adopt value for the AdoptionPolicy could result in multiple drafts being owned by the same PackageVariant.

PackageVariantSet API⁵

The Go types below define the PackageVariantSetSpec.

// PackageVariantSetSpec defines the desired state of PackageVariantSet
type PackageVariantSetSpec struct {
        Upstream *pkgvarapi.Upstream `json:"upstream,omitempty"`
        Targets  []Target            `json:"targets,omitempty"`
}

type Target struct {
        // Exactly one of Repositories, RepositorySeletor, and ObjectSelector must be
        // populated
        // option 1: an explicit repositories and package names
        Repositories []RepositoryTarget `json:"repositories,omitempty"`

        // option 2: a label selector against a set of repositories
        RepositorySelector *metav1.LabelSelector `json:"repositorySelector,omitempty"`

        // option 3: a selector against a set of arbitrary objects
        ObjectSelector *ObjectSelector `json:"objectSelector,omitempty"`

        // Template specifies how to generate a PackageVariant from a target
        Template *PackageVariantTemplate `json:"template,omitempty"`
}

At the highest level, a PackageVariantSet is just an upstream and a list of targets. For each target, there is a set of criteria for generating a list, and a set of rules (a template) for creating a PackageVariant from each list entry.

Since the template is optional, let us start with describing the different types of targets, and how the criteria in each target is used to generate a list that seeds the PackageVariant resources.

The target structure must include one of three different ways of generating the list. The first is a simple list of repositories and package names for each of these repositories⁶. The package name list is required for uses cases in which you want to repeatedly instantiate the same package in a single repository. For example, if a repository represents the contents of a cluster, you may want to instantiate a namespace package once for each namespace, with a name matching the namespace.

The following example shows how to use the repositories field:

apiVersion: config.porch.kpt.dev/v1alpha2
kind: PackageVariantSet
metadata:
  namespace: default
  name: example
spec:
  upstream:
    repo: example-repo
    package: foo
    revision: v1
  targets:
  - repositories:
    - name: cluster-01
    - name: cluster-02
    - name: cluster-03
      packageNames:
      - foo-a
      - foo-b
      - foo-c
    - name: cluster-04
      packageNames:
      - foo-a
      - foo-b

In the following case, the PackageVariant resources are created for each of the pairs of downstream repositories and package names:

All of the PackageVariants in the above list have the same upstream.

The second criteria targeting is via a label selector against the Porch repository objects, along with a list of package names. These packages are instantiated in each matching repository. As in the first example, not listing a package name defaults to one package, with the same name as the upstream package. Suppose, for example, we have the following four repositories defined in our Porch cluster:

If we create a PackageVariantSet with the following specificattion:

spec:
  upstream:
    repo: example-repo
    package: foo
    revision: v1
  targets:
  - repositorySelector:
      matchLabels:
        env: prod
        org: hr
  - repositorySelector:
      matchLabels:
        region: uswest1
      packageNames:
      - foo-a
      - foo-b
      - foo-c

then the PackageVariant resources will be created with the following repository and package names:

The third possibility allows the use of arbitrary resources in the Porch cluster as targeting criteria. The objectSelector looks like this:

spec:
  upstream:
    repo: example-repo
    package: foo
    revision: v1
  targets:
  - objectSelector:
      apiVersion: krm-platform.bigco.com/v1
      kind: Team
      matchLabels:
        org: hr
        role: dev

The object selector works in the same way as the repository selector - in fact, the repository selector is equivalent to the object selector, with the apiVersion and kind values set to point to the Porch repository resources. That is, the repository name comes from the object name, and the package names come from the listed package names. In the description of the template, we will see how to derive different repository names from the objects.

PackageVariant template

As discussed earlier, the list entries generated by the target criteria result in PackageVariant entries. If no template is specified, then the PackageVariant default is used, along with the downstream repository name and the package name, as described in the previous section. The template allows the user to have control over all the values in the resulting PackageVariant. The template API is shown below.

type PackageVariantTemplate struct {
	// Downstream allows overriding the default downstream package and repository name
	// +optional
	Downstream *DownstreamTemplate `json:"downstream,omitempty"`

	// AdoptionPolicy allows overriding the PackageVariant adoption policy
	// +optional
	AdoptionPolicy *pkgvarapi.AdoptionPolicy `json:"adoptionPolicy,omitempty"`

	// DeletionPolicy allows overriding the PackageVariant deletion policy
	// +optional
	DeletionPolicy *pkgvarapi.DeletionPolicy `json:"deletionPolicy,omitempty"`

	// Labels allows specifying the spec.Labels field of the generated PackageVariant
	// +optional
	Labels map[string]string `json:"labels,omitempty"`

	// LabelsExprs allows specifying the spec.Labels field of the generated PackageVariant
	// using CEL to dynamically create the keys and values. Entries in this field take precedent over
	// those with the same keys that are present in Labels.
	// +optional
	LabelExprs []MapExpr `json:"labelExprs,omitempty"`

	// Annotations allows specifying the spec.Annotations field of the generated PackageVariant
	// +optional
	Annotations map[string]string `json:"annotations,omitempty"`

	// AnnotationsExprs allows specifying the spec.Annotations field of the generated PackageVariant
	// using CEL to dynamically create the keys and values. Entries in this field take precedent over
	// those with the same keys that are present in Annotations.
	// +optional
	AnnotationExprs []MapExpr `json:"annotationExprs,omitempty"`

	// PackageContext allows specifying the spec.PackageContext field of the generated PackageVariant
	// +optional
	PackageContext *PackageContextTemplate `json:"packageContext,omitempty"`

	// Pipeline allows specifying the spec.Pipeline field of the generated PackageVariant
	// +optional
	Pipeline *PipelineTemplate `json:"pipeline,omitempty"`

	// Injectors allows specifying the spec.Injectors field of the generated PackageVariant
	// +optional
	Injectors []InjectionSelectorTemplate `json:"injectors,omitempty"`
}

// DownstreamTemplate is used to calculate the downstream field of the resulting
// package variants. Only one of Repo and RepoExpr may be specified;
// similarly only one of Package and PackageExpr may be specified.
type DownstreamTemplate struct {
	Repo        *string `json:"repo,omitempty"`
	Package     *string `json:"package,omitempty"`
	RepoExpr    *string `json:"repoExpr,omitempty"`
	PackageExpr *string `json:"packageExpr,omitempty"`
}

// PackageContextTemplate is used to calculate the packageContext field of the
// resulting package variants. The plain fields and Exprs fields will be
// merged, with the Exprs fields taking precedence.
type PackageContextTemplate struct {
	Data           map[string]string `json:"data,omitempty"`
	RemoveKeys     []string          `json:"removeKeys,omitempty"`
	DataExprs      []MapExpr         `json:"dataExprs,omitempty"`
	RemoveKeyExprs []string          `json:"removeKeyExprs,omitempty"`
}

// InjectionSelectorTemplate is used to calculate the injectors field of the
// resulting package variants. Exactly one of the Name and NameExpr fields must
// be specified. The other fields are optional.
type InjectionSelectorTemplate struct {
	Group   *string `json:"group,omitempty"`
	Version *string `json:"version,omitempty"`
	Kind    *string `json:"kind,omitempty"`
	Name    *string `json:"name,omitempty"`

	NameExpr *string `json:"nameExpr,omitempty"`
}

// MapExpr is used for various fields to calculate map entries. Only one of
// Key and KeyExpr may be specified; similarly only on of Value and ValueExpr
// may be specified.
type MapExpr struct {
	Key       *string `json:"key,omitempty"`
	Value     *string `json:"value,omitempty"`
	KeyExpr   *string `json:"keyExpr,omitempty"`
	ValueExpr *string `json:"valueExpr,omitempty"`
}

// PipelineTemplate is used to calculate the pipeline field of the resulting
// package variants.
type PipelineTemplate struct {
	// Validators is used to caculate the pipeline.validators field of the
	// resulting package variants.
	// +optional
	Validators []FunctionTemplate `json:"validators,omitempty"`

	// Mutators is used to caculate the pipeline.mutators field of the
	// resulting package variants.
	// +optional
	Mutators []FunctionTemplate `json:"mutators,omitempty"`
}

// FunctionTemplate is used in generating KRM function pipeline entries; that
// is, it is used to generate Kptfile Function objects.
type FunctionTemplate struct {
	kptfilev1.Function `json:",inline"`

	// ConfigMapExprs allows use of CEL to dynamically create the keys and values in the
	// function config ConfigMap. Entries in this field take precedent over those with
	// the same keys that are present in ConfigMap.
	// +optional
	ConfigMapExprs []MapExpr `json:"configMapExprs,omitempty"`
}

To make this complex structure more comprehensible, the first thing to notice is that many fields have a plain version and an Expr version. The plain version is used when the value is static across all the PackageVariants. The Expr version is used when the value needs to vary across the PackageVariants.

Let us consider a simple example. Suppose we have a package for provisioning namespaces that is called base-ns. We would like to instantiate this several times in the cluster-01 repository. We could do this with the following PackageVariantSet:

apiVersion: config.porch.kpt.dev/v1alpha2
kind: PackageVariantSet
metadata:
  namespace: default
  name: example
spec:
  upstream:
    repo: platform-catalog
    package: base-ns
    revision: v1
  targets:
  - repositories:
    - name: cluster-01
      packageNames:
      - ns-1
      - ns-2
      - ns-3

This will produce three PackageVariant resources with the same upstream, all with the same downstream repository, and each with a different downstream package name. If we also want to set some labels identically across the packages, we can do this with the template.labels field:

apiVersion: config.porch.kpt.dev/v1alpha2
kind: PackageVariantSet
metadata:
  namespace: default
  name: example
spec:
  upstream:
    repo: platform-catalog
    package: base-ns
    revision: v1
  targets:
  - repositories:
    - name: cluster-01
      packageNames:
      - ns-1
      - ns-2
      - ns-3
    template:
      labels:
        package-type: namespace
        org: hr

The resulting PackageVariant resources include labels in their specification, and are identical, apart from their names and the downstream.package:

apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
  namespace: default
  name: example-aaaa
spec:
  upstream:
    repo: platform-catalog
    package: base-ns
    revision: v1
  downstream:
    repo: cluster-01
    package: ns-1
  labels:
    package-type: namespace
    org: hr
---
apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
  namespace: default
  name: example-aaab
spec:
  upstream:
    repo: platform-catalog
    package: base-ns
    revision: v1
  downstream:
    repo: cluster-01
    package: ns-2
  labels:
    package-type: namespace
    org: hr
---

apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
  namespace: default
  name: example-aaac
spec:
  upstream:
    repo: platform-catalog
    package: base-ns
    revision: v1
  downstream:
    repo: cluster-01
    package: ns-3
  labels:
    package-type: namespace
    org: hr

When using other targeting means, the use of the Expr fields becomes more probable, since we have more possible sources for the different field values. The Expr values are all Common Expression Language (CEL) expressions, rather than static values. This allows the user to construct values based on the various fields of the targets. Consider again the RepositorySelector example, where we have these repositories in the cluster.

If we create a PackageVariantSet with the following specification, then we can use the Expr fields to add labels to the PackageVariantSpecs (and therefore to the resulting PackageRevisions later) that vary according to the cluster. We can also use this to diversify the injectors defined for each PackageVariant, resulting in each PackageRevision having different resources injected. The following specification results in three PackageVariant resources, one for each repository, with the env=prod and org=hr labels.

spec:
  upstream:
    repo: example-repo
    package: foo
    revision: v1
  targets:
  - repositorySelector:
      matchLabels:
        env: prod
        org: hr
    template:
      labelExprs:
        key: org
        valueExpr: "repository.labels['org']"
      injectorExprs:
        - nameExpr: "repository.labels['region'] + '-endpoints'"

The labels and injectors fields of the PackageVariantSpec are different for each of the PackageVariants, as determined by the use of the Expr fields in the template, as shown here:

apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
  namespace: default
  name: example-aaaa
spec:
  upstream:
    repo: example-repo
    package: foo
    revision: v1
  downstream:
    repo: cluster-01
    package: foo
  labels:
    org: hr
  injectors:
    name: useast1-endpoints
---
apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
  namespace: default
  name: example-aaab
spec:
  upstream:
    repo: example-repo
    package: foo
    revision: v1
  downstream:
    repo: cluster-03
    package: foo
  labels:
    org: hr
  injectors:
    name: useast2-endpoints
---
apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
  namespace: default
  name: example-aaac
spec:
  upstream:
    repo: example-repo
    package: foo
    revision: v1
  downstream:
    repo: cluster-04
    package: foo
  labels:
    org: hr
  injectors:
    name: uswest1-endpoints

Since the injectors are different for each PackageVariant, each of the resulting PackageRevisions has different resources injected.

When CEL expressions are evaluated, they have an environment associated with them. That is, there are certain objects that are accessible within the CEL expression. For CEL expressions used in the PackageVariantSet template field, the following variables are available:

There is one expression that is an exception to the above table. Since the repository value corresponds to the downstream repository, we must first evaluate the downstream.repoExpr expression to find that repository. Therefore, for this expression only, repository is not a valid variable.

There is one other variable that is available across all the CEL expressions: the target variable. This variable has a meaning that varies depending on the type of target, as follows:

| Target type | Target variable contents contents | | —————————————————————————– | | Repo/package list | A struct that has two fields: repo and package, as with | | | the repoDefault and the packageDefault values. | | Repository selector | The repository selected by the selector. Although not | | | recommended, this can be different from the repository | | | value, which can be altered with the downstream.repo or | | | the downstream.repoExpr. | | Object selector | The Object selected by the selector. |

For the various resource variables - upstream, repository, and target - arbitrary access to all the fields of the object could lead to security concerns. Therefore, only a subset of the data is available for use in CEL expressions, specifically, the following fields: name, namespace, labels, and annotations.

Given the minor quirk with the repoExpr, it may be helpful to state the processing flow for the template evaluation:

1. The upstream PackageRevision is loaded. It must be in the same namespace as the PackageVariantSet⁷.

2. The targets are determined.

3. For each target, the following is the case:

   1. The CEL environment is prepared with repoDefault, packageDefault, upstream, and the target variables.

   2. The downstream repository is determined and loaded, as follows:

      • If present, the downstream.repoExpr is evaluated using the CEL environment. The result is used as the downstream repository name.
      • If the downstream.repo is set, then this is used as the downstream repository name.
      • If neither the downstream.repoExpr nor the downstream.repo is present, then the default repository name, based on the target, is used (that is, the same value as the repoDefault variable).
      • The resulting downstream repository name is used to load the corresponding repository object in the same namespace as the PackageVariantSet.

   3. The downstream repository is added to the CEL environment.

   4. All other CEL expressions are evaluated.

4. If any of the resources, such as the upstream PackageRevision or the downstream repository, are not found or otherwise fail to load, then the processing stops and a failure condition is raised. Similarly, if a CEL expression cannot be properly evaluated, due to syntax or other issues, then the processing stops and a failure condition is raised.

Other considerations

It seems convenient to automatically inject the PackageVariantSet targeting resource. However, it is better to require the package to advertise the ways in which it accepts injections (that is, the GVKs that it understands), and only inject those. This keeps the separation of concerns cleaner. The package does not build in an awareness of the context in which it expects to be deployed. For example, a package should not accept a Porch repository resource just because that happens to be the targeting mechanism. That would make the package unusable in other contexts.

PackageVariantSet status

The PackageVariantSet status uses the following conditions:

• Stalled is set to True, if there has been a failure that likely requires user intervention.
• Ready is set to True, if the last reconciliation has successfully reconciled all the targeted PackageVariant resources.

Future considerations

• As an alternative to the floating tag proposal, it may instead be desirable to have a separate tag tracking controller that can update the PV and PVS resources, to tweak their upstream as the tag moves.

• Installing a collection of packages across a set of clusters, or performing the same mutations to each package in a collection, is only supported by creating multiple PackageVariant/ PackageVariantSet resources. These are options to consider for the following use cases:

  • Upstreams listing multiple packages.
  • Label the selector against PackageRevisions. This does not seem particularly useful, as PackageRevisions are highly reusable and would probably be composed in many different ways.
  • A PackageRevisionSet resource that simply contains a list of upstream structures and could be used as an upstream. This is functionally equivalent to the upstreams option, except this list is reusable across resources.
  • Listing multiple PackageRevisionSets in the upstream is also desirable.
  • Any or all of the above use cases could be implemented in the PackageVariant or PackageVariantSet, or both.

Footnotes
